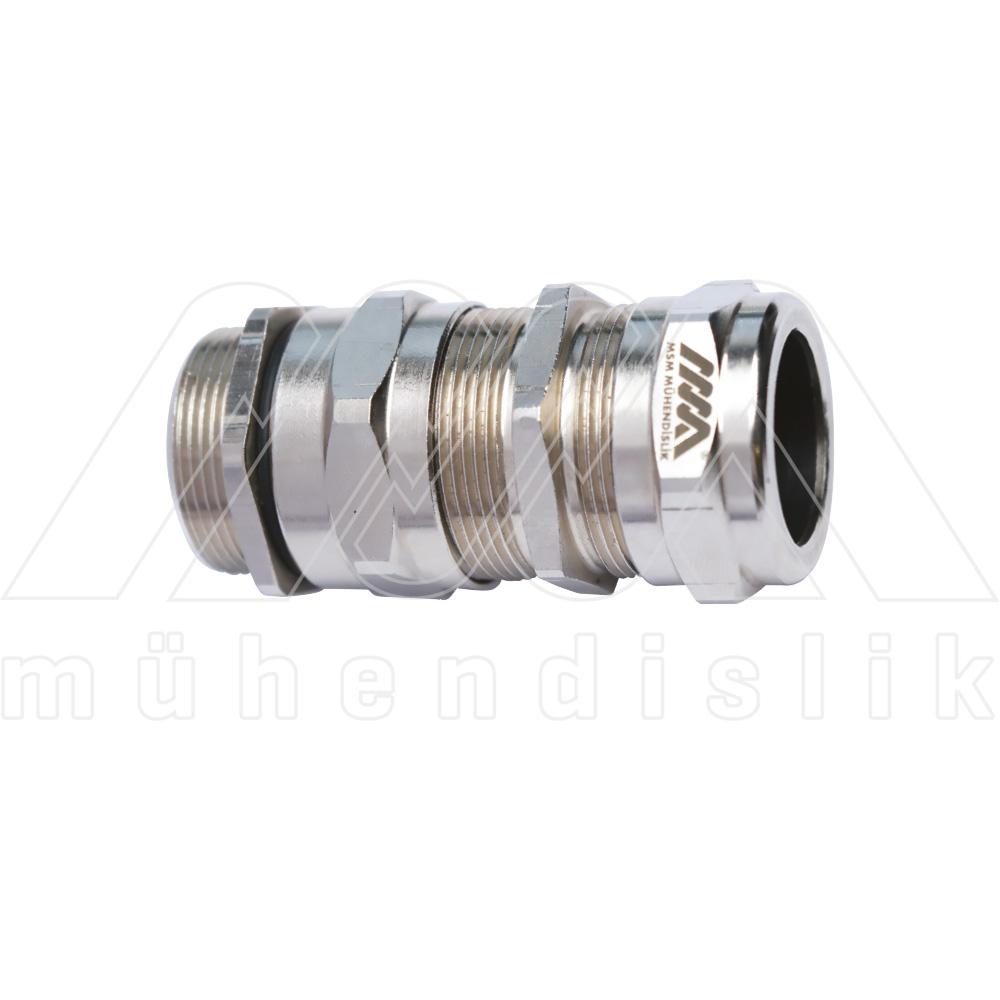

E1W Tip Zırhlı Metal Kablo Rakoru - Pirinç (IP67) (MSM)
Ürün Kodu:E1W
- CE, GOST-R ve EAC sertifikalıdır.
- EN 50262 normuna uygundur, paslanmaz özellikli imalatı da vardır.
- Pirinç (MS-58) orjinli olup istenirse nikel kaplama da yapılabilir.
- Tabloda belirtilen fiziksel bilgiler ± %5 tolerans dahilindedir.
- Contaları, -40˚C +80˚C sıcaklık aralığında süreklilik taşır.
- İstenildiğinde özel ölçü ve diş boylarında özel imalatı da yapılabilir.
Dosyalar
| Dosya Adı | Dosya Boyutu | İşlemler |
|---|---|---|
| E1W_DATA SHEET | 355 KB | İndir |
Açıklama
NPT | NPT | Metrik | Metrik | Pg | Pg | Kablo Sıkma Aralığı mm | Diş Boyu | Köşe Çapı | |
|---|---|---|---|---|---|---|---|---|---|
E1W/12/1/4" | 1/4" | E1W/12/M12 | M12x1,5 | E1W/12/Pg7 | Pg7 | 3,0-6,5 | 4,0-9,0 | 15 | 24,5 |
E1W/16/3/8" | 3/8" | E1W/16/M16 | M16x1,5 | E1W/16/Pg9 | Pg9 | 4,0-9,0 | 11,0-13,5 | 15 | 24,5 |
E1W/20s/1/2" | 1/2" | E1W/20s/M20 | M20x1,5s | E1W/20s/Pg11 | Pg11 | 8,0-11,0 | 11,0-15,0 | 15 | 28,5 |
E1W/20/1/2" | 1/2" | E1W/20/M20 | M20x1,5 | E1W/20/Pg13/16 | Pg13,5/16 | 8,0-13,0 | 15,0-20,0 | 15 | 33,5 |
E1W/25/3/4" | 3/4" | E1W/25/M25 | M25x1,5 | E1W/25/Pg21 | Pg21 | 13,0-19,0 | 20,0-27,0 | 18 | 40,5 |
E1W/32/1" | 1" | E1W/32/M32 | M32x1,5 | E1W/32/Pg29 | Pg29 | 18,0-26,0 | 26,0-32,0 | 18 | 51,5 |
E1W/40/1 1/4" | 1 1/4" | E1W/40/M40 | M40x1,5 | E1W/40/Pg36 | Pg36 | 25,0-32,0 | 33,0-40,0 | 18 | 61,5 |
E1W/50s/1 1/2" | 1 1/2" | E1W/50s/M50 | M50x1,5s | E1W/50s/Pg42 | Pg42 | 30,0-37,0 | 36,0-45,0 | 18 | 65,5 |
E1W/50/2" | 2" | E1W/50/M50 | M50x1,5 | E1W/50/Pg48 | Pg48 | 34,0-44,0 | 43,0-54,0 | 20 | 77,5 |
E1W/63s/2" | 2" | E1W/63s/M63 | M63x1,5s | --- | --- | 40,0-50,0 | 49,0-59,0 | 20 | 84,0 |
E1W/63/2 1/2" | 2 1/2" | E1W/63/M63 | M63x1,5 | --- | --- | 47,0-54,0 | 58,0-64,0 | 22 | 88,5 |
E1W/75s/2 1/2" | 2 1/2" | E1W/75s/M75 | M75x1,5s | --- | --- | 49,0-59,0 | 59,0-65,0 | 22 | 88,5 |
E1W/75/3" | 3" | E1W/75/M75 | M75x1,5 | --- | --- | 59,0-65,0 | 65,0-74,0 | 22 | 100,0 |
